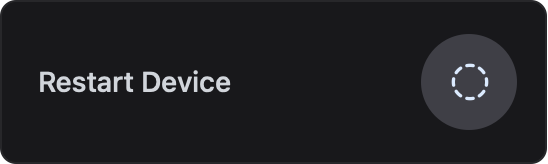

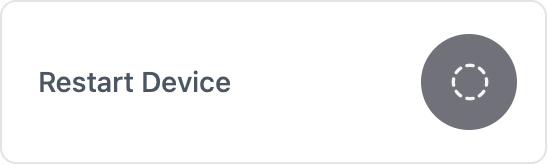

Action Button Card

This feature is only available in ESP-DASH Pro

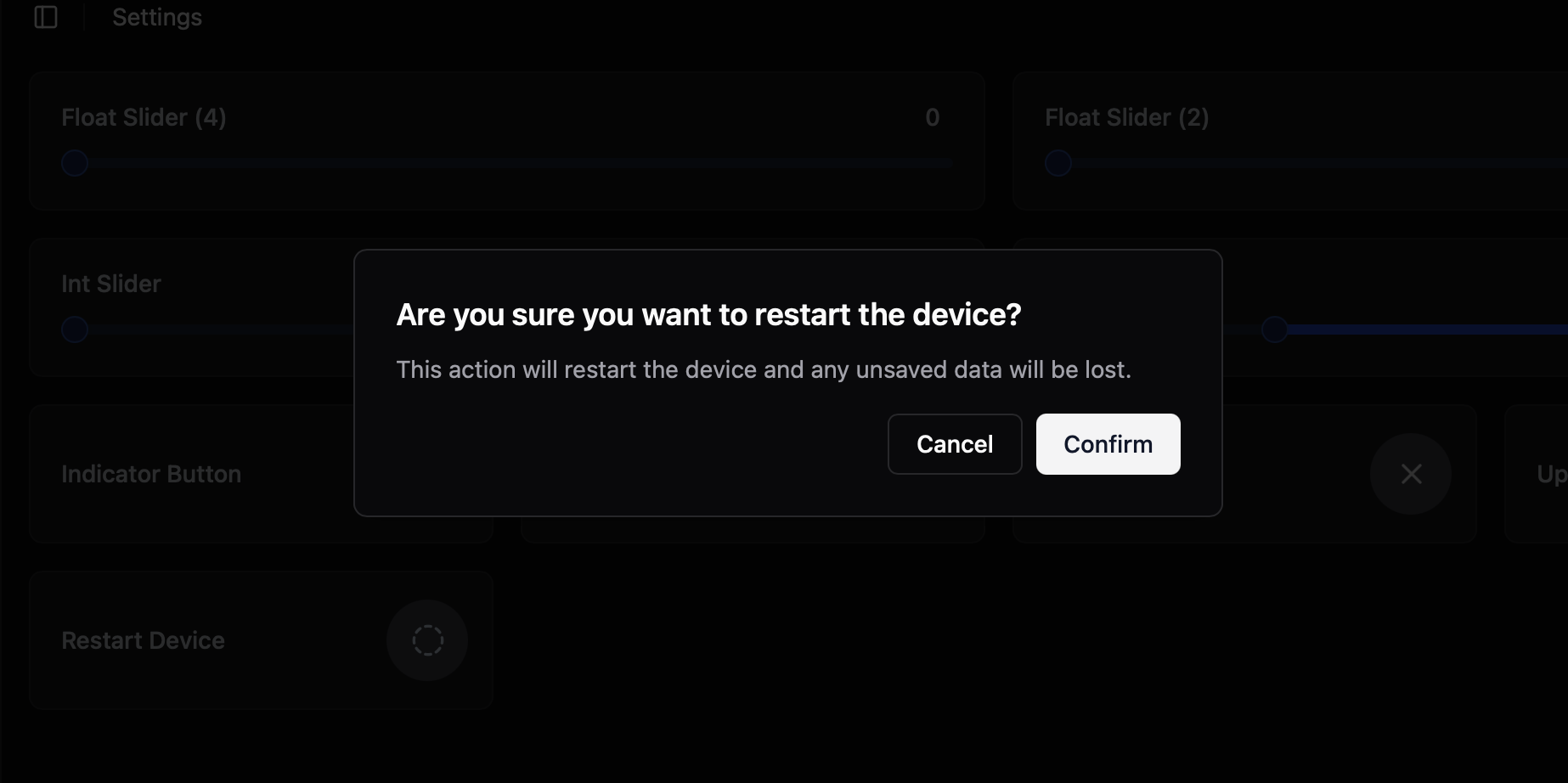

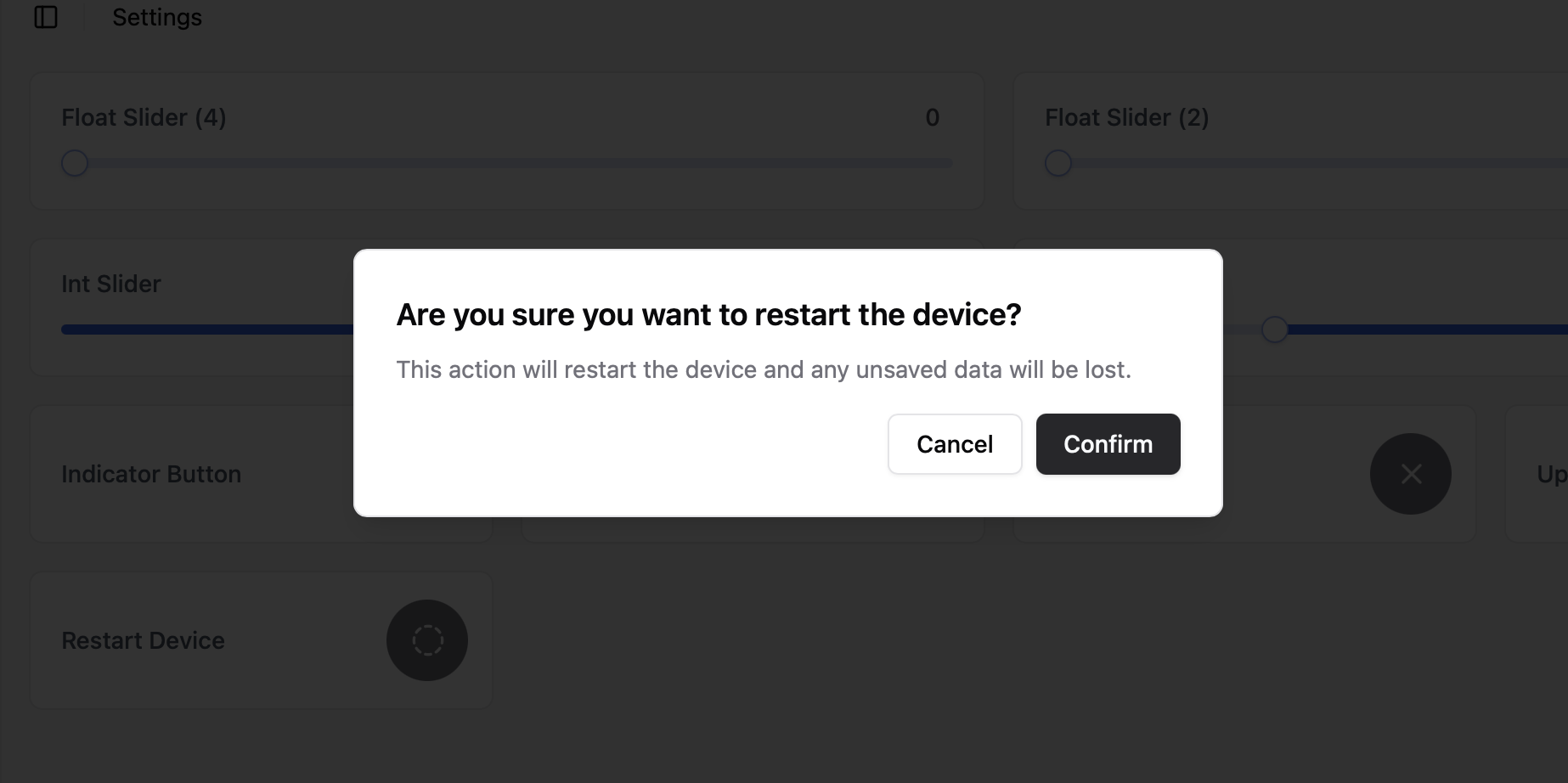

The Action Button Card is a confirmation button, typically used for actions that require user approval (e.g., “Are you sure?”).

Initializer

To create an action button card, use the dash::ActionButtonCard class:

dash::ActionButtonCard actionButton(dashboard, "Restart Device", "Are you sure you want to restart the device?", "This action will restart the device and any unsaved data will be lost.");

The initializer takes the following parameters:

• dashboard: The dashboard instance to which this card belongs.
• name: The name of the action button (e.g., “Restart Device”).
• dialogTitle: The title of the confirmation dialog (e.g., “Are you sure you want to restart the device?”).
• dialogMessage: The message displayed in the confirmation dialog (e.g., “This action will restart the device and any unsaved data will be lost.”).

Methods

Callback

Register a callback to handle user confirmation or cancellation from the dashboard UI.

actionButton.onAction([](bool confirm) {
  if (confirm) {
    Serial.println("Action confirmed!");
  } else {
    Serial.println("Action cancelled.");
  }
});

• Signature: void callback(bool confirm)
• Parameter: bool confirm — True if the user confirmed, false if user clicked cancel button.
• Description: Called when the user interacts with the action button (e.g., confirms or cancels an action).

Reference

// ...
dash::ActionButtonCard actionButton(dashboard, "Restart Device", "Are you sure you want to restart the device?", "This action will restart the device and any unsaved data will be lost.");

void setup() {
  // ...
  actionButton.onAction([](bool confirm) {
    if (confirm) {
      Serial.println("Action confirmed!");
    } else {
      Serial.println("Action cancelled.");
    }
  });
}

void loop() {
  // ...
}
