Joystick Card

This feature is only available in ESP-DASH Pro

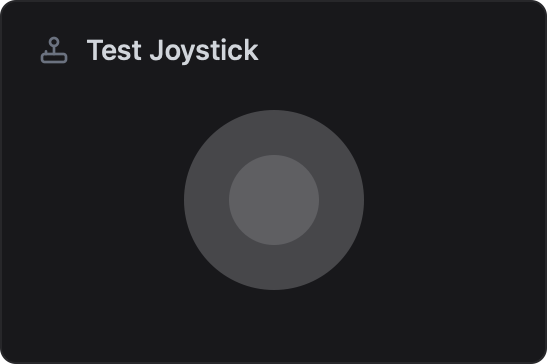

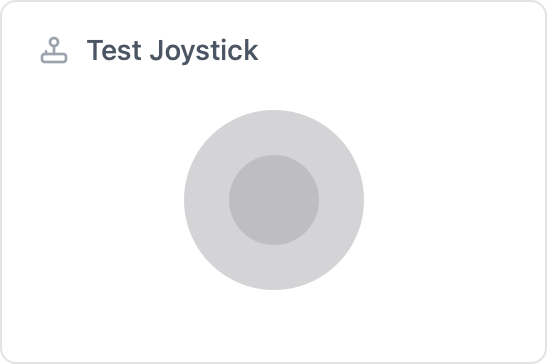

The Joystick Card provides a joystick for directional input and coordinates.

Initializer

To create a joystick card in ESP-DASH v5, use the dash::JoystickCard class. You can optionally lock the direction.


dash::JoystickCard joystick(dashboard, "Joystick 1");
dash::JoystickCard joystickX(dashboard, "Joystick 1", dash::JoystickLock::X);
dash::JoystickCard joystickY(dashboard, "Joystick 1", dash::JoystickLock::Y);

Callback

Register a callback function to be called when the joystick is moved. The callback receives a dash::Joystick object, which provides:

x(): X axis value (int8_t, range: -60 to 60, left to right)
y(): Y axis value (int8_t, range: -60 to 60, up to down)
direction(): Direction as a string (e.g., “up”, “down”, “left”, “right”, “idle”)


joystick.onChange([](dash::Joystick joy) {
  Serial.printf("Joystick: x=%d, y=%d, dir=%s\n", joy.x(), joy.y(), joy.direction().c_str());
  // Use joy.x(), joy.y(), joy.direction() as needed
});

Methods

`setLock(dash::JoystickLock lock)`

Lock the joystick to the X or Y axis, or unlock it for free movement.


joystick.setLock(dash::JoystickLock::X); // Lock to X axis
joystick.setLock(dash::JoystickLock::Y); // Lock to Y axis
joystick.setLock(dash::JoystickLock::NONE); // Unlock

Signature: void setLock(dash::JoystickLock lock)
Parameters:
- dash::JoystickLock lock — The lock state to set (X, Y, or NONE).
Returns: void

`lock()`

Get the current lock state.


dash::JoystickLock currentLock = joystick.lock();

Signature: dash::JoystickLock lock()
Parameters: None
Returns: dash::JoystickLock — The current lock state.

Reference

A complete example showing how to use the Joystick Card in a real project. This demonstrates initialization, callback usage (with dash::Joystick), lock control, and sending updates.


dash::JoystickCard joystick(dashboard, "Joystick 1");

void setup() {
  // ...

  // Register callback for joystick movement
  joystick.onChange([](dash::Joystick joy) {
    Serial.printf("Joystick: x=%d, y=%d, dir=%s\n", joy.x(), joy.y(), joy.direction().c_str());
    // Use joy.x(), joy.y(), joy.direction() as needed
  });

  // Optionally lock to X or Y axis
  joystick.setLock(dash::JoystickLock::X); // or JoystickLock::Y
}

void loop() {
  // ...
}
