Tabs

Tabs

This feature is only available in ESP-DASH Pro

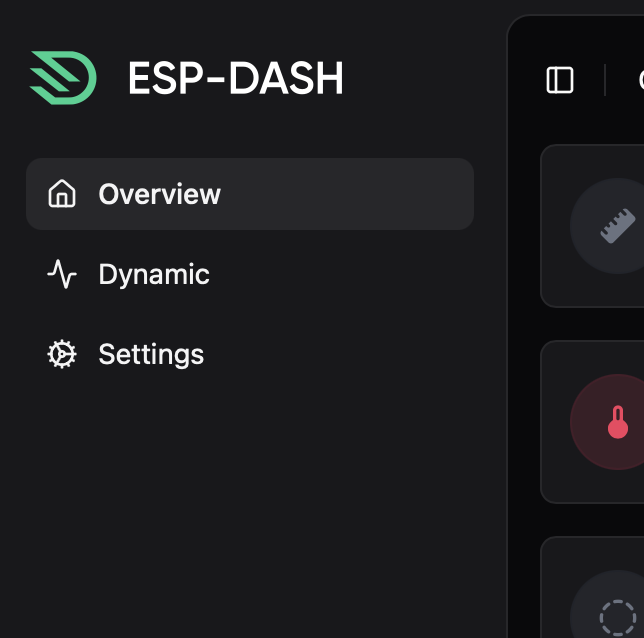

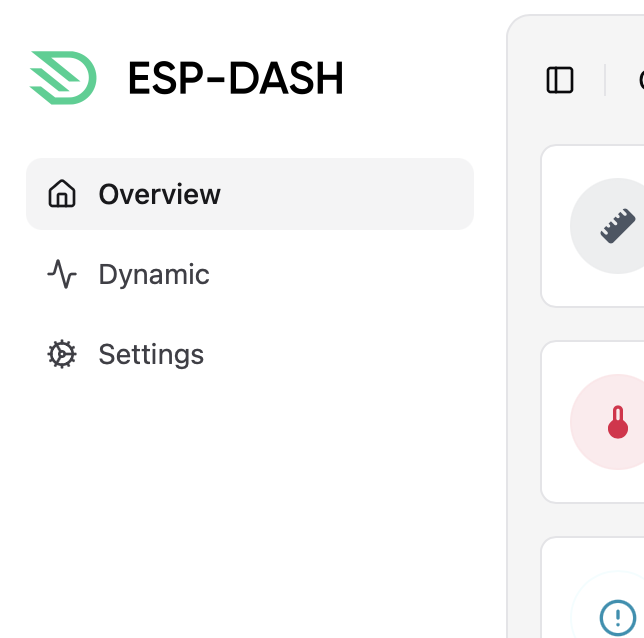

Preview

Tabs in ESP-DASH Pro allow you to create multiple pages to organize and sort your various widgets (cards & charts). This feature comes particularly useful when there are all a lot of widgets.

By default, ESP-DASH puts everything into ‘Overview’ Tab.

💡

If every card or chart is assigned a custom tab, then the dashboard will intelligently hide the overview tab from sidebar.

Create Tab

Initializer should be kept in global scope. ( ie. outside of any function in your sketch )

dash::Tab tab1(dashboard, "Custom Tab 1", dash::Icon::COG_ICON);

As of v5, you can assign a icon to the tab using dash::Icon enum. This icon will be displayed in the sidebar next to the tab name. Here are the available icons:

Icon

Value

None (default)

UNASSIGNED_ICON

HOME_ICON

COG_ICON

SUN_ICON

MOON_ICON

SUN_MOON_ICON

DATABASE_ICON

COMPUTER_ICON

ACTIVITY_ICON

ALARM_ICON

AUDIO_ICON

JOYSTICK_ICON

Set Tab

Once a tab has been created, you need to set the tab for relevant cards and charts using setTab function of Card or Chart class. setTab accepts a pointer to the tab which we just created.

card1.setTab(tab1);
chart1.setTab(tab1);
