Progress Card

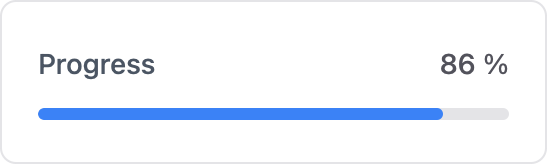

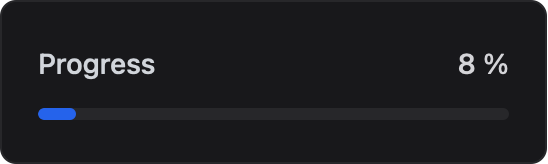

The Progress Card visualizes a value as a progress bar, within a specified minimum and maximum range.

Initializer

To create a progress bar card in ESP-DASH v5, use the dash::ProgressCard<T, Precision> class. The template parameters allow you to control the value type and decimal precision:

• T: Value type (e.g., int, float)
• Precision: Number of decimal places for floating point values (default: 2)

Example 1: Integer value (default)

dash::ProgressCard<int> progress(dashboard, "Progress", 0, 100, "%");

Example 2: Float value, custom precision (4 decimals)

dash::ProgressCard<float, 4> progressFloat(dashboard, "Progress", 0, 1, "kWh");

Callback

Methods

setValue(T value)

Set the progress bar’s value. The type of value must match the template type you chose for T (e.g., int, float).

progressBar.setValue(value); // value is of type T

• Signature: void setValue(T value)
• Parameters:
  • T value — The value to display (type matches template parameter T).
• Returns: void

value()

Get the current progress value. The return type matches your template type for T (e.g., int, float).

T v = progressBar.value();

• Signature: T value()
• Parameters: None
• Returns: T — The current value displayed by the card (type matches template parameter T).

Note:

• T can be one of: int or float depending on how you instantiate the card.

setMin(T min)

Set the minimum value for the progress bar.

progressBar.setMin(min); // min is of type T

• Signature: void setMin(T min)
• Parameters:
  • T min — The minimum value (type matches template parameter T).
• Returns: void

setMax(T max)

Set the maximum value for the progress bar.

progressBar.setMax(max); // max is of type T

• Signature: void setMax(T max)
• Parameters:
  • T max — The maximum value (type matches template parameter T).
• Returns: void

min()

Get the minimum value for the progress bar.

T minVal = progressBar.min();

• Signature: T min()
• Parameters: None
• Returns: T — The minimum value (type matches template parameter T).

max()

Get the maximum value for the progress bar.

T maxVal = progressBar.max();

• Signature: T max()
• Parameters: None
• Returns: T — The maximum value (type matches template parameter T).

setUnit(const char* unit)

Set the unit or symbol for the progress bar.

progressBar.setUnit("%");

• Signature: void setUnit(const char* unit)
• Parameters:
  • const char* unit — The unit or symbol to display.
• Returns: void

unit()

Get the unit or symbol for the progress bar.

const char* unit = progressBar.unit();

• Signature: const char* unit()
• Parameters: None
• Returns: const char* — The current unit or symbol for the card.

Reference

Below is a reference code showing how to integrate this widget in a real project, including initialization and value updates usage.

// Create a progress bar card (int, default)
dash::ProgressCard<int> progressCard(dashboard, "Progress", 0, 100, "%");

void setup() {
  // ...
  progressCard.setValue(50);
  progressCard.setUnit("%");
}

void loop() {
  // ...
}
