Pie Chart

This feature is only available in ESP-DASH Pro

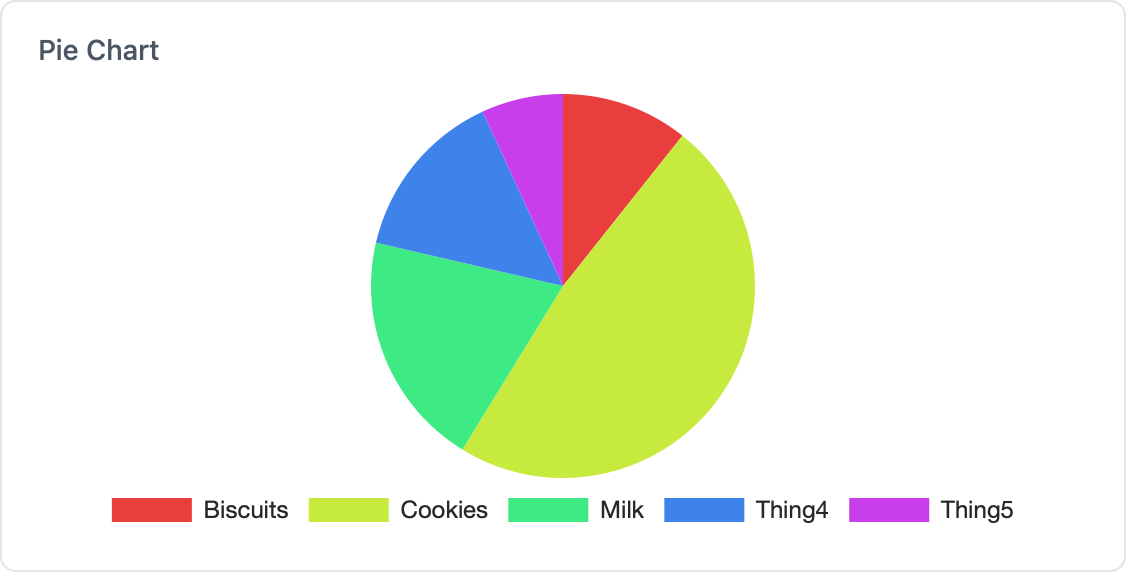

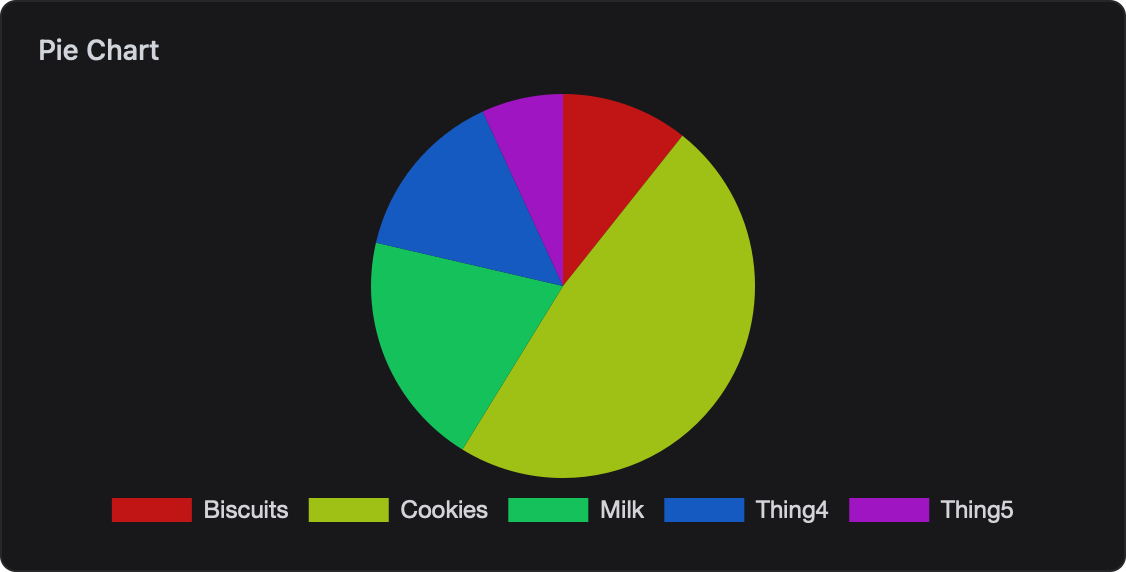

Pie charts are great for showing proportions and percentages of a whole. In ESP-DASH v5, the dash::PieChart<L, V> class lets you create pie charts with flexible label and value types.

Initializer

To create a pie chart, instantiate dash::PieChart<L, V> with your dashboard instance and a descriptive title. The template parameters L and V define the types for the labels and values, respectively. Choose types that match your data:

Example 1: String labels, integer values

// Labels: categories (strings), Values: int
Dash::PieChart<const char*, int> pie(dashboard, "Market Share");

Example 2: Integer labels, float values

// Labels: int, Values: float
Dash::PieChart<int, float> pie2(dashboard, "Distribution");

Just make sure the arrays you pass to setLabels and setValues match the types you specify in the template.

Callback

Methods

setLabels(L arr_labels[], size_t label_size)

Sets the labels for the pie chart. The type of arr_labels must match the template type you chose for L.

// If L is const char* (labels):
pie.setLabels(Labels, 3); // Labels is const char*[]

// If L is int:
pie2.setLabels(labelArray, 5); // labelArray is int[]

• Signature: void setLabels(L arr_labels[], size_t label_size)
• Parameters:
  • L arr_labels[] — Array of label values.
  • size_t label_size — Number of elements in the array.
• Returns: void

setValues(V arr_values[], size_t value_size)

Sets the values for the pie chart. The type of arr_values must match the template type you chose for V.

// If V is int:
pie.setValues(Values, 3); // Values is int[]

// If V is float:
pie2.setValues(valueArray, 5); // valueArray is float[]

• Signature: void setValues(V arr_values[], size_t value_size)
• Parameters:
  • V arr_values[] — Array of value data.
  • size_t value_size — Number of elements in the array.
• Returns: void

labels()

Returns a pointer to the current labels array. The return type matches your template type for L.

// If L is const char*:
const char** labels = pie.labels();

// If L is int:
int* labelsInt = pie2.labels();

• Signature: L* labels()
• Parameters: None
• Returns: L* — Pointer to the current labels array.

values()

Returns a pointer to the current values array. The return type matches your template type for V.

// If V is int:
int* values = pie.values();

// If V is float:
float* valuesF = pie2.values();

• Signature: V* values()
• Parameters: None
• Returns: V* — Pointer to the current values array.

Reference

Below is a complete example showing how to initialize and update a pie chart. Comments explain each step for clarity.

// Create a pie chart for market share
// Labels: product names
// Values: market share percentages

dash::PieChart<const char*, int> pie(dashboard, "Market Share");

// Data arrays must be global so the chart can access them at any time
const char* Labels[] = {"A", "B", "C"};
int Values[] = {40, 30, 30};

void setup() {
  // Set labels and values for the chart
  pie.setLabels(Labels, 3);
  pie.setValues(Values, 3);
}

// Later in your code, you can update Values[] directly to update the chart in real time
