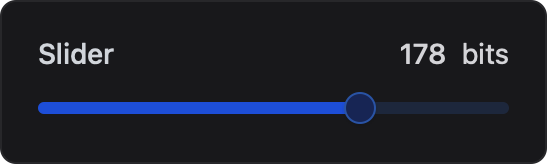

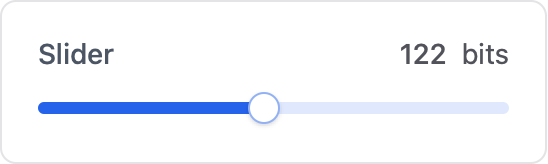

Slider Card

The Slider card provides an interactive element for users to select a numerical value by dragging a slider along a defined range. It’s ideal for controlling settings like volume, brightness, or any other value that can be represented on a continuous scale.

Initializer

To create a slider card in ESP-DASH v5, use the dash::SliderCard<T, Precision> class. The template parameters allow you to control the value type and decimal precision:

• T: Value type (e.g., int, float)
• Precision: Number of decimal places for floating point values (default: 2)

Example 1: Integer value (default)

dash::SliderCard<int> slider(dashboard, "Slider", 0, 100, 1, "%");

Example 2: Float value, custom precision (2 decimals)

dash::SliderCard<float, 2> sliderFloat(dashboard, "Slider", 0, 1, 0.01f, "V");

Callback

You can register a callback to handle value changes from the dashboard:

slider1.onChange([](int value) {
  Serial.printf("Slider value changed to: %d\n", value);
});

Methods

setValue(T value)

Set the slider’s value. The type of value must match the template type you chose for T (e.g., int, float).

slider.setValue(value); // value is of type T

• Signature: void setValue(T value)
• Parameters:
  • T value — The value to display (type matches template parameter T).
• Returns: void

value()

Get the current slider value. The return type matches your template type for T (e.g., int, float).

T v = slider.value();

• Signature: T value()
• Parameters: None
• Returns: T — The current value displayed by the card (type matches template parameter T).

Note:

• T can be one of: int or float depending on how you instantiate the card.

setMin(T min)

Set the minimum value for the slider.

slider.setMin(min); // min is of type T

• Signature: void setMin(T min)
• Parameters:
  • T min — The minimum value (type matches template parameter T).
• Returns: void

setMax(T max)

Set the maximum value for the slider.

slider.setMax(max); // max is of type T

• Signature: void setMax(T max)
• Parameters:
  • T max — The maximum value (type matches template parameter T).
• Returns: void

setStep(T step)

Set the step value for the slider.

slider.setStep(step); // step is of type T

• Signature: void setStep(T step)
• Parameters:
  • T step — The step value (type matches template parameter T).
• Returns: void

min()

Get the minimum value for the slider.

T minVal = slider.min();

• Signature: T min()
• Parameters: None
• Returns: T — The minimum value (type matches template parameter T).

max()

Get the maximum value for the slider.

T maxVal = slider.max();

• Signature: T max()
• Parameters: None
• Returns: T — The maximum value (type matches template parameter T).

step()

Get the step value for the slider.

T stepVal = slider.step();

• Signature: T step()
• Parameters: None
• Returns: T — The step value (type matches template parameter T).

Note:

• T can be one of: int or float depending on how you instantiate the card.

setUnit(const char* unit)

Set the unit or symbol for the slider.

slider.setUnit("bits");

• Signature: void setUnit(const char* unit)
• Parameters:
  • const char* unit — The unit or symbol to display.
• Returns: void

unit()

Get the unit or symbol for the slider.

const char* unit = slider.unit();

• Signature: const char* unit()
• Parameters: None
• Returns: const char* — The current unit or symbol for the card.

Reference

Below is a reference code showing how to integrate this widget in a real project, including initialization and value updates usage.

// Create a slider card (int, default)
dash::SliderCard<int> sliderCard(dashboard, "Slider", 0, 100, 1, "%");

void setup() {
  // ...

  sliderCard.setValue(25);
  sliderCard.setUnit("%");
}

void loop() {
  // ...
}
