Range Slider Card

This feature is only available in ESP-DASH Pro

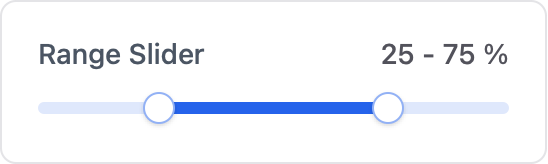

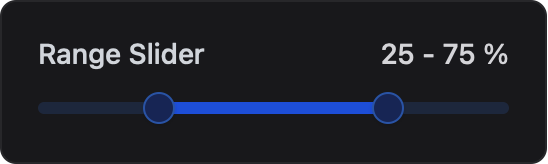

The Range Slider Card allows users to select a range (min and max) using a dual-thumb slider. Useful for filtering, thresholds, or any scenario where a value range is needed.

Initializer

To create a range slider card, use the dash::RangeSliderCard class. You can specify the value type (e.g., int, float) and optionally the step and unit.

dash::RangeSliderCard<uint8_t> rangeSlider(dashboard, "Range Slider", 0, 100, 1, "%");

Callback

Register a callback to handle range changes from the dashboard UI.

rangeSlider.onChange([](const dash::Range<uint8_t>& range) {
  Serial.printf("Range: %s\n", range.to_string().c_str());
  // Optionally update the card and dashboard
  rangeSlider.setValue(range);
  dashboard.refresh(rangeSlider);
});

• Parameter: const dash::Range<T>& range — The new range selected by the user.

Methods

setValue(const dash::Range<T>& value)

Set the current range value for the slider.

rangeSlider.setValue({25, 75});

• Signature: bool setValue(const dash::Range<T>& value)
• Parameters:
  • const dash::Range<T>& value — The new range value (e.g., {min, max}).
• Returns: bool — True if the value changed.

value()

Get the current range value.

auto range = rangeSlider.value();

• Signature: dash::Range<T> value()
• Parameters: None
• Returns: dash::Range<T> — The current range value.

setMin(T min)

Set the minimum value for the range slider.

rangeSlider.setMin(min); // min is of type T

• Signature: bool setMin(T min)
• Parameters:
  • T min — The minimum value (type matches template parameter T).
• Returns: bool — True if the value changed.

setMax(T max)

Set the maximum value for the range slider.

rangeSlider.setMax(max); // max is of type T

• Signature: bool setMax(T max)
• Parameters:
  • T max — The maximum value (type matches template parameter T).
• Returns: bool — True if the value changed.

setStep(T step)

Set the step size for the range slider.

rangeSlider.setStep(step); // step is of type T

• Signature: bool setStep(T step)
• Parameters:
  • T step — The step size (type matches template parameter T).
• Returns: bool — True if the value changed.

setUnit(const char* unit)

Set the unit label for the slider.

rangeSlider.setUnit("%");

• Signature: bool setUnit(const char* unit)
• Parameters:
  • const char* unit — The unit string.
• Returns: bool — True if the value changed.

min()

Get the current minimum value.

T min = rangeSlider.min();

• Signature: T min()
• Parameters: None
• Returns: T — The current minimum value (type matches template parameter T).

max()

Get the current maximum value.

T max = rangeSlider.max();

• Signature: T max()
• Parameters: None
• Returns: T — The current maximum value (type matches template parameter T).

step()

Get the current step size.

T step = rangeSlider.step();

• Signature: T step()
• Parameters: None
• Returns: T — The current step size (type matches template parameter T).

unit()

Get the current unit string.

const char* unit = rangeSlider.unit();

• Signature: const char* unit()
• Parameters: None
• Returns: const char* — The current unit string.

Reference

// Create a range slider card
// ...
dash::RangeSliderCard<uint8_t> rangeSlider(dashboard, "Range Slider", 0, 100, 1, "%");

void setup() {
  // ...
  rangeSlider.setValue({25, 75});
  rangeSlider.onChange([](const dash::Range<uint8_t>& range) {
    Serial.printf("Range: %s\n", range.to_string().c_str());
    rangeSlider.setValue(range);
    dashboard.refresh(rangeSlider);
  });
}

void loop() {
  // ...
}
