Indicator Button Card

This feature is only available in ESP-DASH Pro

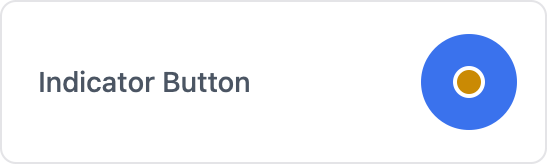

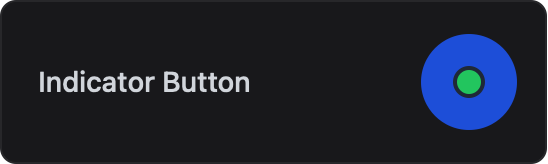

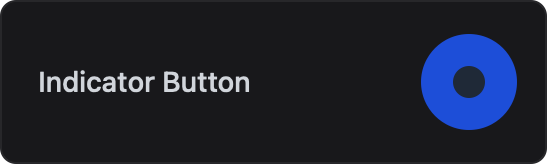

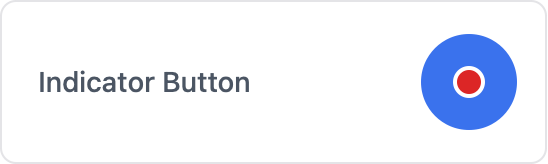

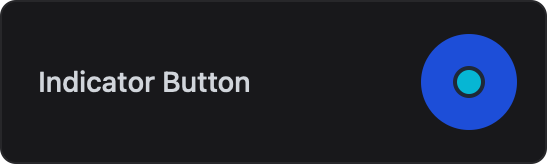

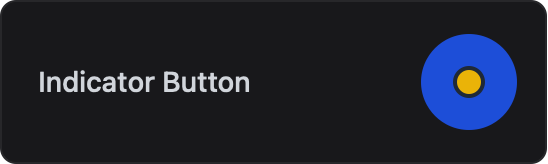

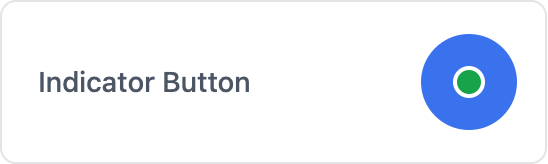

The Indicator Button Card is a push button with a built-in status indicator (color/status). Useful for showing state whenever the button is pressed, such as toggling a light or starting a process. It can display different statuses like success, warning, or danger.

Initializer

To create an indicator button card, use the dash::IndicatorButtonCard class:


dash::IndicatorButtonCard indicatorButton(dashboard, "Indicator Button");

Methods

`setIndicator(bool show, dash::Status status)`

Set the indicator state (on/off) and status (color).


indicatorButton.setIndicator(true, dash::Status::SUCCESS);

Signature: bool setIndicator(bool show, dash::Status status)
Parameters:
- bool show — Show or hide the indicator.
- dash::Status status — Status type (e.g., NONE, INFO, SUCCESS, WARNING, DANGER).
Returns: bool — True if the value changed.

`status()`

Get the current status of the indicator.


dash::Status status = indicatorButton.status();

Signature: dash::Status status()
Parameters: None
Returns: dash::Status — The current status.

`setValue(T value)`

Set the indicator value. The type of value must match the template type you chose for T (e.g., int, float, bool).


indicatorButton.setValue(value); // value is of type T

Signature: void setValue(T value)
Parameters:
- T value — The value to set (type matches template parameter T).
Returns: void

Note:

T can be one of: int, float, or bool depending on how you instantiate the card.

Callback


indicatorButton.onPush([]() {
  Serial.println("Indicator button pressed!");
});

Signature: void callback()
Description: Called when the user presses the indicator button.

Reference


// ...
dash::IndicatorButtonCard indicatorButton(dashboard, "Indicator Button");

void setup() {
  // ...
  indicatorButton.setIndicator(true, dash::Status::SUCCESS);
  indicatorButton.onPush([]() {
    Serial.println("Indicator button pressed!");
  });
}

void loop() {
  // ...
}
